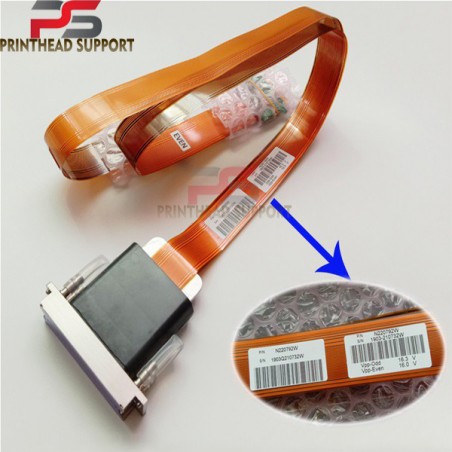

This Ricoh GEN4 (MH2420), 384 channels, 30 kHz, 7 picoliter, greyscale printhead is suitable for Mimaki UJF-3042 printers. This printhead has an integrated heater and thermistor.
Security policy (edit with Customer reassurance module)
Delivery policy (edit with Customer reassurance module)
Return policy (edit with Customer reassurance module)
Ricoh gen4 7pl printhead for mimaki ujf 3042 uv printer
UJF-3042 GEN4 7PL Printhead
This Ricoh GEN4 (MH2420), 384 channels, 30 kHz, 7 picoliter, greyscale printhead is suitable for Mimaki UJF-3042 printers. This original printhead has an integrated heater and thermistor.
This printhead correspond to Mimaki part number M010010. This part includes the damper adapter M014497.
Technical Specifications :
Size: 63 x 63 x 16,2 mm (excluding cables)
Head Materials: SST, Ni and Epoxy Adhesive
Nozzle Plate Surface: Non-coated SST
Number of Nozzles: 2 x 192 nozzles
Nozzle Spacing: 0,1693 mm
Piezo Type: D33 Stacked PZT
Temperature Control: Integrated Heater and Thermistor
Operator Temperature range: Up to 60° C
Native Drop Volume: 7 pl
Drop Volume Range: 5-25 pl with greyscale
Jetting Frequency: Up to 30 kHZ
Life: 100 billion actuations per nozzle
Printer compatibility :
Ampla Digital Targa XT 1804
Ampla Digital Targa XT 1808
Ampla Digital Targa XT 1816
Ampla Digital Targa XT 3204
Ampla Digital Targa XT 3208
Ampla Digital Targa XT 3216
Mimaki UJF-3042
Mimaki UJF-3042FX
Mimaki UJF-3042HG
Mimaki UJF-6042
This Ricoh GEN4 (MH2420), 384 channels, 30 kHz, 7 picoliter, greyscale printhead is suitable for Mimaki UJF-3042 printers. This printhead has an integrated heater and thermistor.
This printhead assy is suitable for the Mimaki JV34-260 printers. The JV34-260 Printhead ID Set has a native resolution of 360 dpi.
The JV34-260 Printhead ID Set solvent printhead is based upon the most recent Epson technology. This is the original Mimaki part (number M010792).
This printhead GEN5 is suitable for Mimaki JFX200-2513 printers. It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density. This is the original Mimaki part (number M022625 replacing M017004 and M015028).
This UJF-605CII head assy is suitable for the Mimaki UJF-605CII / C printers. This assembly includes the printhead, installation bracket, damper and filter. This is the original Mimaki part (number M007040).
Mimaki original DX5 printhead for CJV30/JV33/JV5/TS3-1600/TS5-1600 AMF Print Head - M007947 Original mimaki JV33-160 dx5 printhead with memory board/ card for mimaki Jv33 jv5 cjv30 printer M007947 1440Dpi Green Connector DX5 Printhead M007947 for Mimaki JV33/JV5/mutoh ValueJet
This GEN5 (MH5420/5440) Assy Packaging is suitable for Mimaki SWJ-320 printers. This is the original Mimaki part (number M012639). This packaging contains the assembly including tubes, valves, ink connectors and brackets.
This Mimaki JF Print Head Assembly on-demand piezo electric inkjet print head is designed for industrial applications with high print quality.
The Mimaki JV3 Eco Solvent DX4 printhead M004372 is suitable for Roland, Mutoh and Epson eco-solvent, mild solvent and aquaeus printers.
The JV34-260 Printhead ID Set can be used in 4-colour or 8-colour printers and has a minimum, variable droplet size of 1.5 pico litre (max. droplet size is 21 pico litre). The typical firing frequency for the JV34-260 Printhead ID Set is 8 kHz.
This is the original Mimaki part (number M015372 replacing number M015307). The calbe of this printhead is 354mm long and 30 mm wide.
MIMAKI UJF-3042 UV / 3042 FX MP-M010010To be used with: Mimaki UJF-3042 / UJF-3042FX / UJF-3042HG / UJF-6042Remarks: Original
